Introduction¶
Configuration¶
InputActions is configured through a YAML configuration file. There are no plans to add a UI in the future.
Important
Breaking changes may be introduced at any time, they will be announced in pull requests and in the release changelog.
Important
If a configuration renders the session unusable, the emergency key combination (backspace+space+enter in any order) can be held for 2 seconds to suspend InputActions until the next config reload. A notification will be sent when triggered.
Configuration file path¶
File candidates (highest priority to lowest):
~/.config/inputactions/config-debug.yaml(debug builds only)/etc/inputactions/config.yaml~/.config/inputactions/config.yaml(created if not present)
If write access to the configuration file by unprivileged programs is not desired, choose the /etc/inputactions/config.yaml file.
Note
The configuration path is only chosen when inputactions-client is started (standalone implementation) or the compositor plugin is loaded
(compositor plugin implementations).
Reloading¶
By default, the configuration is reloaded automatically when the file is modified and a notification is shown when there is an error. To reload the configuration manually, run inputactions config reload.
Issues¶
The inputactions config reload and inputactions config issues commands will show detailed information about any issues with the configuration - errors,
deprecated features and unused properties.
First trigger¶
All configuration for specific device types is located in the keyboard, mouse, pointer, touchpad and touchscreen root nodes. Triggers are defined in the
gestures property of the those nodes.
This trigger will launch dolphin if you swipe three fingers to the right.
touchpad:
gestures:
- type: swipe
direction: right
fingers: 3
actions:
- command: dolphin
More information about this particular trigger can be found at TouchpadSwipeTrigger. It inherits properties from TouchpadTrigger, which in turn inherits from Trigger. Same goes for the action - CommandAction. Inheritance is mentioned in the table at the beginning of a page.

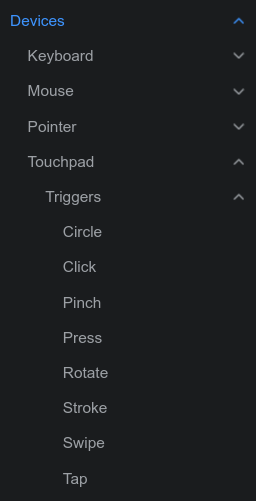

The list of triggers for a specific device type may be found at Devices -> [device] -> Triggers.
Action events¶
The on property of actions allows you to control at which point of the trigger’s lifecycle it should execute. The default
value is end. Set it to begin if you want to execute an actions as soon as the trigger begins.
To create a repeating action, set on to update and specify the repeat rate in the interval property.
touchpad:
gestures:
- type: swipe
direction: up
fingers: 3
actions:
- on: update
interval: 10
input:
- keyboard: [ volumeup ]
Note
Available action events for a given trigger are mentioned in the table at the top of the trigger’s page. Some triggers do not support certain events.
Complex triggers¶
Complex triggers will require multiple actions that execute at different points of the trigger’s lifecycle. Here is an example three-finger window drag trigger.
- type: swipe
direction: any
fingers: 3
actions:
- on: begin
input:
- keyboard: [ +leftmeta ]
- mouse: [ +left ]
- on: update
input:
- mouse: [ move_by_delta ]
- on: end_cancel
input:
- keyboard: [ -leftmeta ]
- mouse: [ -left ]
Conditions¶
To make a trigger eligible for activation only if certain criteria are met (finger count, window class and much more), set the conditions property.
touchpad:
gestures:
- type: swipe
direction: right
fingers: 3
conditions:
- $window_class == firefox
actions:
- input:
- mouse: [ forward ]
It is also possible to set conditions on actions, though input will be blocked even if no action is eligible for execution.
Note
Overusing action conditions will make the configuration a mess full of duplicate conditions. Prefer trigger conditions instead, which can be specified in a trigger group (will be mentioned later) to reduce duplication.
See Condition for more information.
Bidirectional triggers¶
Changing the direction does not cause trigger activation. The following configuration will not allow for changing direction without lifting fingers.
- type: rotate
direction: clockwise
# ...
- type: rotate
direction: counterclockwise
# ...
To create triggers with two repeating actions depending on the direction, set direction to a value that allows multiple directions (explicitly stated in
the property’s description).
- type: rotate
direction: any
actions:
- on: update
interval: -10 # counterclockwise
input:
- keyboard: [ volumedown ]
- on: update
interval: 10 # clockwise
input:
- keyboard: [ volumeup ]
Conflicting triggers¶
At some point you may run into a situation where you want a global trigger that does x, and a local one for program y that does z. The first solution that may come to your mind is this:
# Global
- type: ...
conditions:
- $window_class != program
# ...
# Local
- type: ...
conditions:
- $window_class == program
# ...
This will very quickly become a big mess. Instead, you should rely on the behavior that the first trigger to execute an action will cancel all other triggers, and triggers are updated from top to bottom. This is a simplification, see Conflict resolution for a detailed explanation.
The proper solution is:
# Local
- type: ...
conditions:
- $window_class == program
# ...
# Global
- type: ...
# No window_class condition
YAML anchors¶
Anchors can be used to define values (mouse trigger button, strokes etc.) once and reuse them thorough the configuration.
&name- Define (can be done anywhere)*name- Reference (must be defined first above the reference)
The merge operator << is not supported.
anchors:
- &mouse_stroke_button [ back ]
- &stroke_up [ 'MGQA0DMnPMwwAGQA' ]
- &stroke_left [ 'ZDIAnQAxZAA=' ]
- &stroke_down [ 'MAAAMTNkZAA=' ]
- &stroke_circle_clockwise [ 'PgwAAE8LBRldGgwpZDEUN19LHUhTWSNgMl0uphJTObUERj/JAChJ2gUaT/AaDVf7QAZkAA==' ]
- &stroke_circle_counterclockwise [ 'UQsAojwHBl0mDA1UFBYTSgcjGT8AMx8yAEEjIgpWKhEXXi8CKl81+UBaPO9YS0XiZDtLzGInUbtZGVayRAhfpTUEZAA=' ]
mouse:
gestures:
- type: stroke
strokes: *stroke_up
mouse_buttons: *mouse_stroke_button
# ...
Trigger groups¶
Trigger groups apply a set of properties to all triggers specified in the gestures property of the group and can be nested.
Conditions are merged into an all: condition group consisting of the group’s and the trigger’s condition.
anchors:
- &mouse_stroke_button [ back ]
- &stroke_up [ 'MGQA0DMnPMwwAGQA' ]
- &stroke_down [ 'MAAAMTNkZAA=' ]
mouse:
gestures:
- conditions:
- $window_class == firefox
gestures:
# Firefox triggers
- type: stroke
mouse_buttons: *mouse_stroke_button
gestures:
# Stroke triggers
- strokes: *stroke_up
actions:
- input:
- keyboard: [ leftctrl+t ]
- strokes: *stroke_down
actions:
- input:
- keyboard: [ leftctrl+n ]
# Other Firefox triggers
- type: press
mouse_buttons: [ extra7 ]
actions:
- input:
- mouse: [ back ]
- conditions:
- $window_class == VSCodium
gestures:
# VSCodium triggers
- type: stroke
mouse_buttons: *mouse_stroke_button
gestures:
# Stroke triggers
- strokes: *stroke_up
actions:
- input:
- keyboard: [ leftctrl+pageup ]
- strokes: *stroke_down
actions:
- input:
- keyboard: [ leftctrl+pagedown ]
Chaining triggers¶
The last_trigger_id variable contains the ID of the last trigger. You can use it to have a trigger activate only if another specific trigger had been
performed immediately prior.
- type: hold
fingers: 2
id: hold_2
- type: swipe
direction: right
fingers: 3
conditions:
- $last_trigger_id == hold_2
actions:
# ...
If you want to be able to perform the swipe trigger multiple times without holding every time, you can set set_last_trigger: false on the swipe trigger and
it will not set the last_trigger_id variable anymore.
There is currently no convenient way to chain more than two triggers.
